Single Direction Thrust Ball Bearing

Send Inquiry

Product Introduction

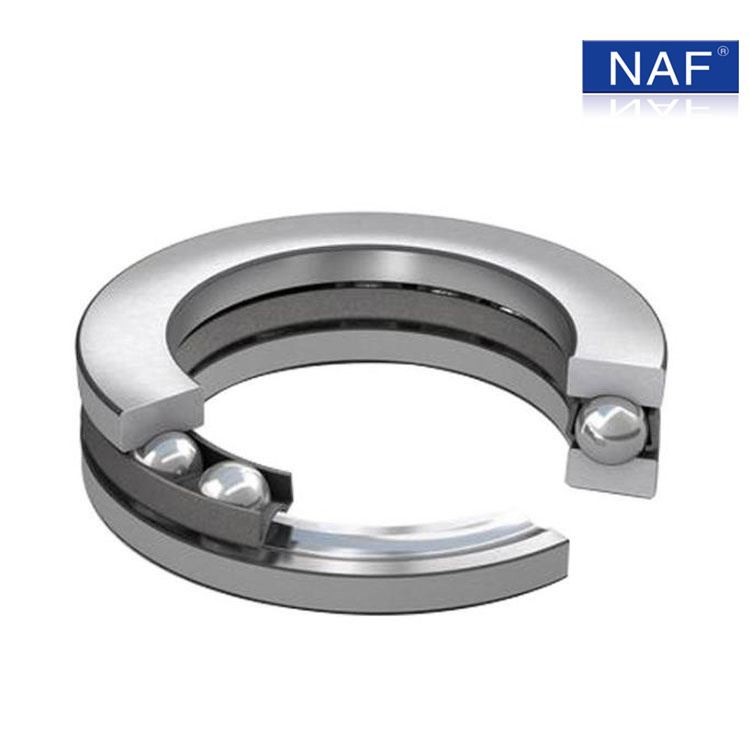

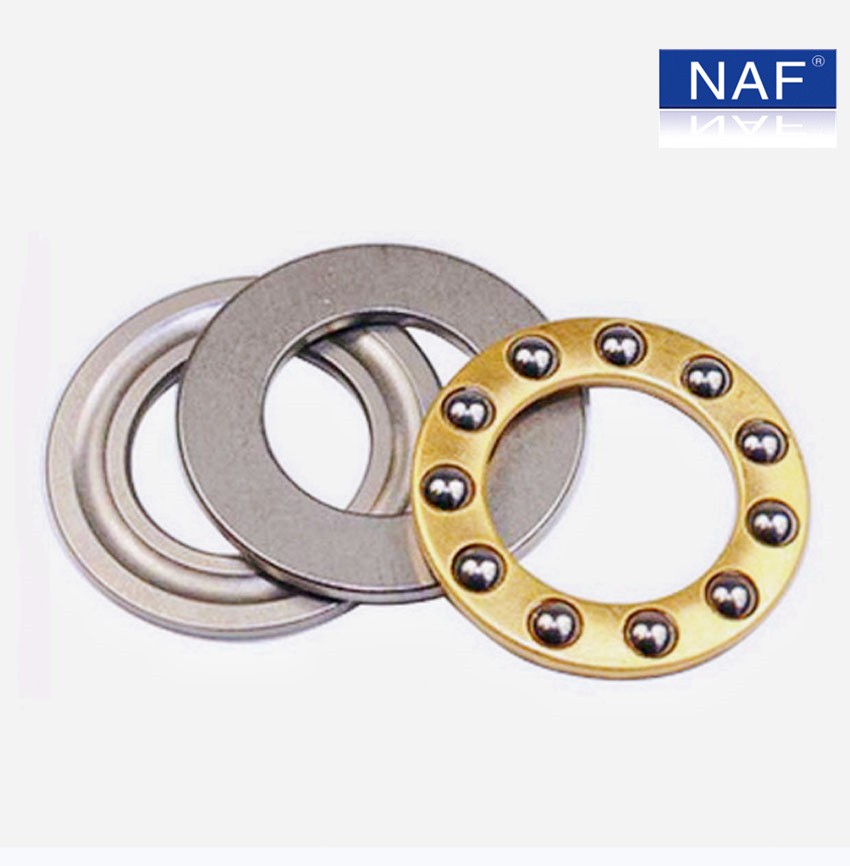

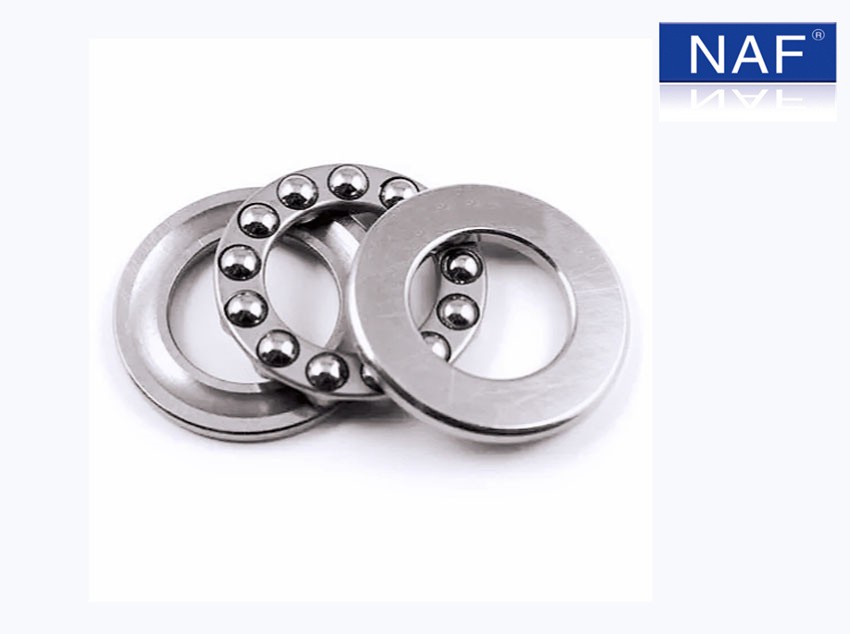

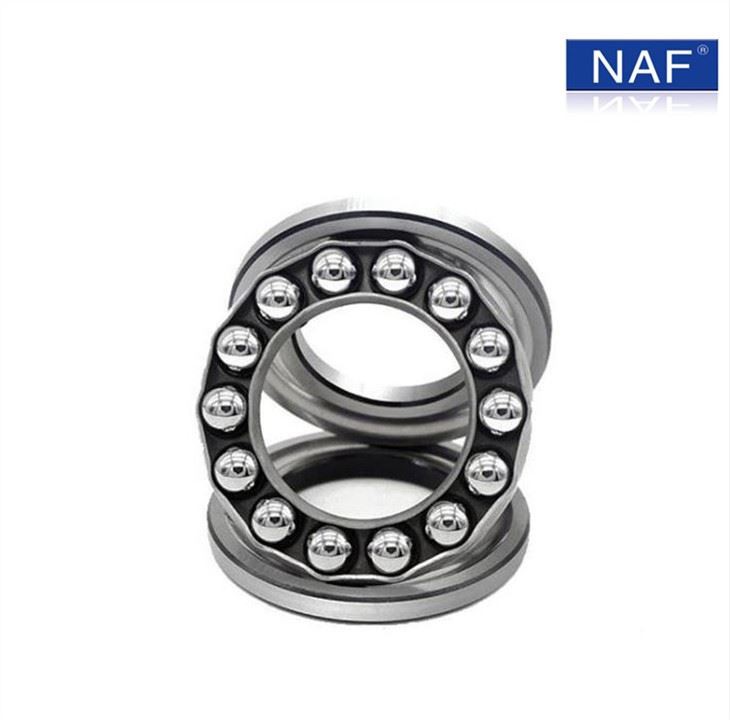

The unidirectional thrust ball bearing comprises a shaft ring, a seat ring and a steel ball and cage assembly. Unidirectional thrust ball bearings are separated type, and the shaft ring, seat ring and ball - cage assembly can be installed separately. Unidirectional thrust ball bearings can bear unidirectional axial load and can be positioned in unidirectional axial direction, but must not bear any radial load.

There are two kinds of small one-way thrust ball bearings, respectively with flat seat ring or with aligning seat ring. Bearings with aligning seat rings can be used in conjunction with aligning seat washers to compensate for angular alignment errors between the supporting surface and the shaft in the bearing seat. Thrust ball bearings with flat seat rings cannot withstand any alignment error between the shaft and the bearing seat, or angular error between the supporting surface in the bearing seat and the shaft.

Thrust ball bearings with self-aligning seat rings are usually used in conjunction with self-aligning seat washers to compensate for the initial error between the support surface and the shaft within the bearing seat.

Bearing NO.	Main size(mm)			Basic Load rating(KN)		Speed rating(r/min)		Weight(kg)
	Main size(mm)			Basic Load rating(KN)		Speed rating(r/min)		Weight(kg)
	d	D	T	Cr	Cor	Grease	Oil	(kg)
51100	10	24	9	10	14	6500	1000	0.02
51200	10	26	11	12.7	17.1	5700	8800	0.03
51101	12	26	9	10.3	15.4	6500	10000	0.022
51201	12	28	11	13.2	19	5400	8300	0.034
51102	15	28	9	10.5	16.8	6100	9400	0.024
51202	15	32	12	16.6	24.8	4900	7500	0.046
51103	17	30	9	10.8	18.2	6100	9400	0.028
51203	17	35	12	17.2	27.3	4900	7500	0.053
51104	20	35	10	14.2	24.7	5100	7900	0.04
51204	20	40	14	22.3	37.7	3900	6000	0.082
51304	20	47	18	35	55.8	3600	4500	0.092
51105	25	42	11	19.5	37.2	4400	6800	0.059
51205	25	47	15	27.8	50.4	3600	5500	0.12
51305	25	52	18	35.7	61.4	3100	4800	0.18
51405	25	60	24	55.6	89.4	2600	4000	0.34
51106	30	47	11	20.4	42.2	4300	6600	0.068
51206	30	52	16	29.3	58.2	3400	5200	0.15
51306	30	60	21	42.8	78.7	2700	4200	0.27
51406	30	70	28	72.8	126	2200	3400	0.53
51107	35	52	12	20.4	44.7	3900	6000	0.09
51207	35	62	18	39.2	78.2	2900	4500	0.22
51307	35	68	24	55.5	105	2400	3700	0.39
51407	35	80	32	87.1	155	1900	2900	0.79
51108	40	60	13	26.9	62.8	3400	5300	0.12
51208	40	68	19	46.9	98.3	2700	4200	0.27
51308	40	78	26	69.3	135	2100	3300	0.55
51408	40	90	36	113	205	1700	2600	1.14
51109	45	65	14	27.8	69.1	3200	5000	0.15
51209	45	73	20	47.7	105	2600	4000	0.32
51309	45	85	28	80	163	1900	3000	0.69
51409	45	100	39	130	242	1500	2300	1.47
51110	50	70	14	28.8	75.4	3100	4800	0.16
51210	50	78	22	48.5	111	2300	3600	0.39
51310	50	95	31	91.6	186	1800	2700	1
51410	50	110	43	148	283	1400	2100	1.99
51111	55	78	16	34.8	93.1	2800	4300	0.24
51211	55	90	25	69.4	159	2100	3200	0.61
51311	55	105	35	119	246	1600	2400	1.34
51411	55	120	48	178	359	1200	1900	2.64
51112	60	85	17	41.4	113	2600	4000	0.29
51212	60	95	26	73.6	179	1900	3000	0.69
51312	60	110	35	124	267	1500	2300	1.43
51412	60	130	51	201	397	1100	1700	3.51
51113	65	90	18	41.7	117	2400	3700	0.34
51213	65	100	27	74.8	189	1900	2900	0.77
51313	65	115	36	128	287	1400	2200	1.57
51413	65	140	56	232	493	1000	1600	4.47
51114	70	95	18	43	127	2300	3600	0.36
51214	70	105	27	73.6	189	1800	2800	0.81
51314	70	125	40	148	339	1300	2000	2.06
51414	70	150	60	250	553	940	1450	5.48
51115	75	100	19	42.3	127	2200	3400	0.42
51215	75	110	27	7.74	209	1800	2700	0.86
51315	75	135	44	171	396	1200	1900	2.68
51415	75	160	65	252	560	880	1350	6.75
51116	80	105	19	44.6	141	2100	3300	0.43
51216	80	115	28	78.5	218	1700	2600	0.95
51316	80	140	44	176	242	1200	1800	2.82
51117	85	110	19	45.9	150	2100	3200	0.46
51217	85	125	31	92.3	251	1500	2300	1.29
51317	85	150	49	206	498	1100	1700	3.66
51118	90	120	22	59.7	190	1900	2900	0.68
51218	90	135	35	117	326	1400	2100	1.77
51318	90	155	50	213	524	1000	1600	3.88
51120	100	135	25	85	268	1600	2500	0.99
51220	100	150	38	147	410	1200	1900	2.36
51320	100	170	55	236	596	940	1450	5.11
51122	110	145	25	87.1	288	1600	2400	1.08
51222	110	160	38	148	431	1200	1800	2.57
51322	110	190	63	280	754	810	1250	7.72
51124	120	155	25	89	308	1500	2300	1.16
51224	120	170	39	154	472	1100	1700	2.86
51126	130	170	30	104	352	130	2000	1.87
51226	130	190	45	203	622	970	1500	4.09
51128	140	180	31	107	377	1200	1900	2.2
51228	140	200	46	215	669	940	1450	4.46
51130	150	190	31	109	402	1200	1900	2.15
51230	150	215	50	244	768	840	1300	5.64
53205U	25	47	19	27.8	50.4	3600	5500	0.152
53305U	25	52	22	35.7	61.4	3100	4800	0.224
53206U	30	52	20	29.3	58.2	3400	5200	0.193
53306U	30	60	25	42.8	78.7	2700	4200	0.326
53207U	35	62	22	39.2	78.2	2900	4500	0.277
53307U	35	68	28	55.5	105	2400	3700	0.484
53208U	40	68	23	46.9	98.3	2700	4200	0.34
53308U	40	78	31	69.3	135	2100	3300	0.69
53209U	45	73	24	47.7	105	2600	4000	0.397
53309U	45	85	33	80	163	1900	3000	0.85
53210U	50	78	26	48.5	111	2300	3600	0.48
53310U	50	95	37	91.6	186	1800	2700	1.24
53211U	55	90	30	69.4	159	2100	3200	0.77
53311U	55	105	42	119	246	1600	2400	1.69
53212U	60	95	31	73.6	179	1900	3000	0.85
53312U	60	110	42	124	267	1500	2300	1.78
53213U	65	100	32	74.8	189	1900	2900	0.93
53313U	65	115	43	128	287	1400	2200	1.95
53214U	70	105	32	73.6	189	1800	2800	0.99
53314U	70	125	48	148	339	1300	2000	2.56
53215U	75	110	32	77.4	209	1800	2700	1.06
53315U	75	135	52	171	396	1200	1900	3.27
2900	10	26	12	995	1390	5600	8400	0.033
2901	12	28	12	1030	1540	5400	810	0.037
2902	15	31	12	1120	1850	5100	7700	0.041
2903	18	35	12	1130	2010	4800	7300	0.045
2904	20	37	12	1160	2160	4700	7100	0.055
2904(1/2)	22	42	14	1490	2820	4100	6100	0.084
2905	25	45	14	1510	3000	3900	5900	0.094
2906	30	50	14	1580	3400	3700	5600	0.108
2907	35	55	16	2340	5050	3300	5000	0.138
2908	40	60	16	2450	5650	3200	4800	0.154
2909	45	68	16	2540	6300	3000	4500	0.2
2910	50	74	18	3000	7600	2700	4100	0.257
2911	55	78	18	3150	8400	2600	4000	0.264
2912	60	82	18	3150	8750	2600	3900	0.27
2913	65	90	20	3250	9500	2300	3500	0.372
2914	70	95	20	3400	10300	2200	3400	0.396
2915	75	100	20	3500	11100	2200	3300	0.42
3905	25	52	16	27100	50500	3400	5200	0.147
3906	30	60	19	38000	72500	3900	4400	0.237
3907	35	68	22	50500	99000	2500	3800	0.346
3908	40	76	25	61000	119000	2200	3400	0.486
3909	45	85	28	79500	163000	2000	3000	0.684
3910	50	92	31	97000	202000	1800	2800	0.889
3911	55	100	33	110000	240000	1700	2600	1.114
3912	60	106	35	119000	263000	1600	2400	1.293
3913	65	112	36	128000	287000	1500	2300	1.443
3914	70	120	38	143000	335000	1400	2200	1.767
3915	75	128	41	159000	365000	1300	2000	2.132
3916	80	136	44	183000	425000	1200	1900	2.606
3917	85	145	47	207000	49000	1100	1700	3.157
3918	90	155	50	232000	555000	1100	1600	3.907
3929	95	165	54	253000	630000	1000	1500	4.81
3920	100	172	57	250000	630000	980	1400	5.454
3921	105	180	60	257000	67000	930	1400	6.354

Bearing NO.	Main size(mm)			Basic Load rating(KN)		Speed rating(r/min)		Weight(kg)
	Main size(mm)			Basic Load rating(KN)		Speed rating(r/min)
	d	D	T	CR	Cor	Grease	Oil
O-3	9.53	25.4	13.49	11800	15200	5400	8100	0.036
O-4	12.7	32.544	15.88	18600	25100	4300	6500	0.077
O-5	15.9	35.719	15.88	19400	29300	4100	6200	0.086
O-6	19.1	38.894	15.88	21400	34500	4000	6000	0.1
O-7	22.2	42.069	15.88	21900	37500	3800	5800	0.11
O-8	25.4	45.224	15.88	22500	41000	3700	5500	0.128
O-9	28.6	48.419	15.88	24100	47000	3600	5400	0.164
O-10	31.8	53.181	18.26	27900	54500	3200	4800	0.186
O-11	34.9	56.356	18.26.	28600	58000	3100	4600	0.2
O-12	38.1	59.531	18.26	30500	66000	3000	4500	0.21
O-13	41.3	62.706	18.26	26700	63000	2900	4400	0.26
O-14	44.5	68.262	19.05	32500	77500	2700	4100	0.285
O-15	47.6	71.438	19.05	37500	89000	2700	4000	0.3
O-16	50.8	75.406	19.05	38000	94000	2600	3900	0.405
O-17	54	81.756	22.23	49500	118000	2300	3500	0.45
O-18	57.2	84.931	22.23	50500	125000	2300	3400	0.59
O-19	60.3	91.281	25.4	5800	145000	2000	3100	0.61
