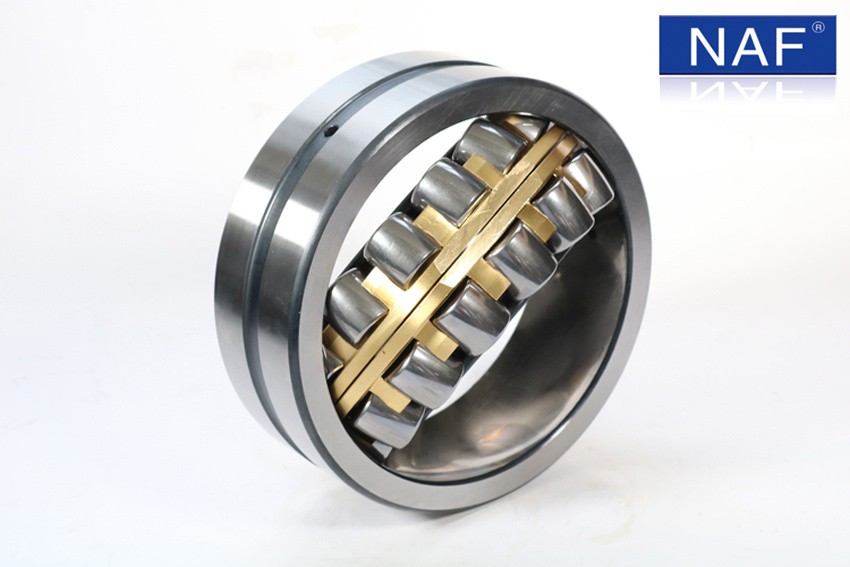

Brass Cage Ma Type Spherical Roller Bearing

Brass Cage MA Type Spherical Roller Bearing
2
MA-3
MA-4
MA-5

Brass Cage Ma Type Spherical Roller Bearing

Vibrating screen bearing with external guide copper retainer, inner ring with a fixed retaining edge, can withstand axial force, inner diameter tolerance is non-standard tolerance

Send Inquiry

Product Introduction

Vibrating screen bearing with external guide copper retainer, inner ring with a fixed retaining edge, can withstand axial force, inner diameter tolerance is non-standard tolerance, its high bearing capacity, impact resistance, vibration resistance, small friction, low temperature rise, radial clearance between C3 and C4, combined with good heat treatment, life can reach more than one time ordinary bearings.

Main size（mm）				Load Rating		Bearing No.		Speed rating (r/min)		Fixing size(mm)			Weight/kg
Main size（mm）				Load Rating		Bearing No.		Speed rating (r/min)		Fixing size(mm)
d	D	B	rsmin	Cr	Cor	Cylindrical Bore	Conical bore	Grease	Oil	da(min)	Da(max)	ra(max)
40	90	33	1.5	124	143	22308MA	22308MAK	4300	5300	52	78	1.5	1.02
45	100	36	1.5	142	178	22309MA	22309MAK	4300	5300	54	91	1.5	1.44
50	110	40	2	186	222	22310MA	22310MAK	3600	4500	60	100	2.1	1.92
55	120	43	2	217	261	22311MA	22311MAK	3200	4000	65	110	2.1	2.44
60	130	46	2.1	248	296	22312MA	22312MAK	3000	3800	72	118	2.1	3.03
65	140	48	2.1	2600	3400	22313MA	22313MAK	2600	3400	77	128	2.1	3.73
70	150	51	2.1	310	380	22314MA	22314MAK	2600	3200	82	138	2.1	4.31
75	160	55	2.1	354	459	22315MA	22315MAK	2300	3000	87	148	2.1	5.29
80	170	58	2.1	400	511	22316MA	22316MAK	2100	2800	92	158	2.1	6.32
85	180	60	3	441	562	22317MA	22317MAK	2000	2600	99	166	2.5	7.26
90	190	64	3	491	641	22318MA	22318MAK	1900	2400	104	176	2.5	8.56
95	200	67	3	541	715	22319MA	22319MAK	1900	2300	109	186	2.5	10
100	215	73	3	624	837	22320MA	22320MAK	1700	2100	11	201	2.5	12.82
110	240	80	3	719	960	22322MA	22322MAK	1500	1900	124	226	2.5	18.3
120	260	86	3	843	1140	22324MA	22324MAK	1300	1800	134	246	2.5	22
130	280	93	4	970	1350	22326MA	22326MAK	1300	1700	148	262	3	28.8
140	300	102	4	1110	1650	22328MA	22328MAK	1200	1600	158	282	3	35.6
150	320	108	4	1260	1830	22330MA	22330MAK	1200	1500	168	302	3	42.9
160	340	114	4	1470	1950	22332MA	22332MAK	1000	1200	178	322	3	51
170	360	120	4	1560	2100	22334MA	22334MAK	800	1000	188	342	3	60

Why choose us?

Our Spherical Roller Bearings are designed to reduce noise and vibration.
Professional sales staff will recommend suitable products for customers, and after-sales staff will solve related problems for customers on the premise of "service first".
You can rely on us for accurate and timely information about our Spherical Roller Bearings.
Our company constantly explore and develop Brass Cage Ma Type Spherical Roller Bearing suitable for customer needs.
Our Spherical Roller Bearings are manufactured using environmentally friendly processes.
With an international vision, our company is creatively inheriting superior resources and meeting customers' high standard demands with high-quality Brass Cage Ma Type Spherical Roller Bearing and services.
Our Spherical Roller Bearings are designed to be easy to install and require little maintenance.
We emphasize that quality products are created by quality people, maximizing the creativity and potential of our employees.
We have a reputation for providing the best value for money when it comes to Spherical Roller Bearings.
The company provides solutions to the needs of customers around the world with personalized customization, allowing the Brass Cage Ma Type Spherical Roller Bearing to add unique elements and becoming more vivid and rich, which greatly enhance the added value of products.
