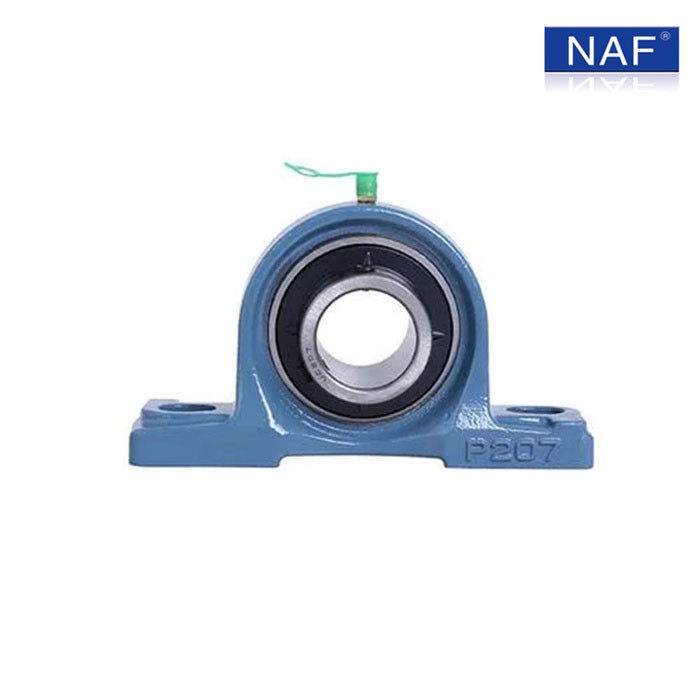

Pillow Block Bearing UCP207
The UCP207 Pillow Block bearings, which are a member of the metric outer spherical housing bearing series, have an inner diameter and height of 35mm and 93mm, respectively. includes male set screw spherical bearing UC207 and vertical seat P207. The UCP207-20, UCP207-21, UCP207-22, and UCP207-23 are part of its inch line, which also offers cast iron seats, iron retainers, high-precision steel balls, and seats with interchangeable seat colors. Due to the sturdy interchangeability of the outer spherical bearing with the seat, the bearing center may be flexibly mounted in the bearing seat of the same specification and in different forms. Espresso Machines, Complete Smelting Equipment, Natural Ventilation Cooling Tower, Pulse Welder, Rice Noodle Machinery, Packing Tower, Crawler Excavator, Pipeline Pump, Testing Machine, Desulfurization, and Dust Removal Equipment, Single Stage

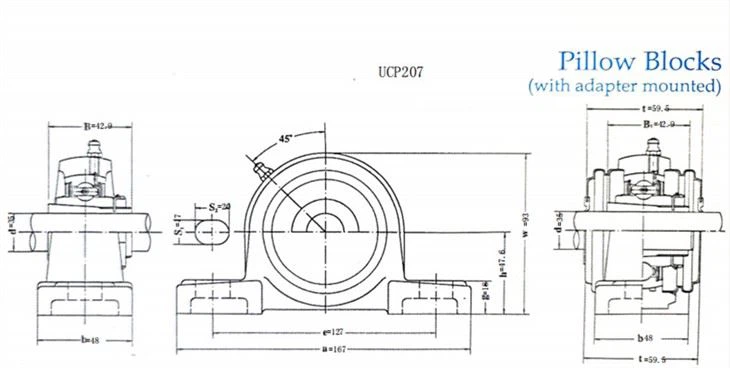

| Unit No. | Dimensions in.mm.in. | Bolt Size mm inch | Bearing No. | Housing No. | |||||||||||
| d | h | a | e | b | S1 | S2 | g | w | t | B | n | ||||
| UCP207 | 35 | 47.6 | 167 | 127 | 48 | 17 | 20 | 18 | 93 | 59.5 | 42.9 | 17.5 | M14 | UC207 | P207 |
| UCP207-20 | 1-1/4 | 1-7/8 | 6-9/16 | 5 | 1-7/8 | 43/64 | 25/32 | 45/64 | 3-21/32 | 2-11/32 | 1.689 | 0.689 | 1/2 | UC207-20 | |
| UCP207-21 | 1-5/16 | UC207-21 | |||||||||||||
| UCP207-22 | 1-3/8 | UC207-22 | |||||||||||||
| UCP207-23 | 1-7/16 | UC207-23 | |||||||||||||
