Non-standard Deep Groove Ball Bearings

Send Inquiry

Product Introduction

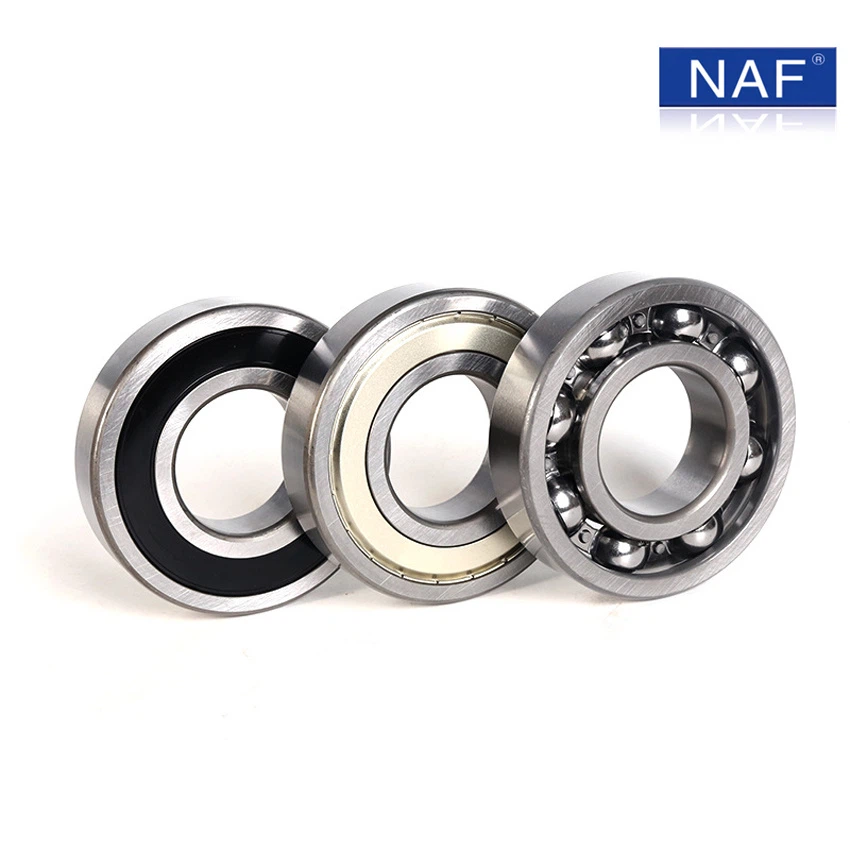

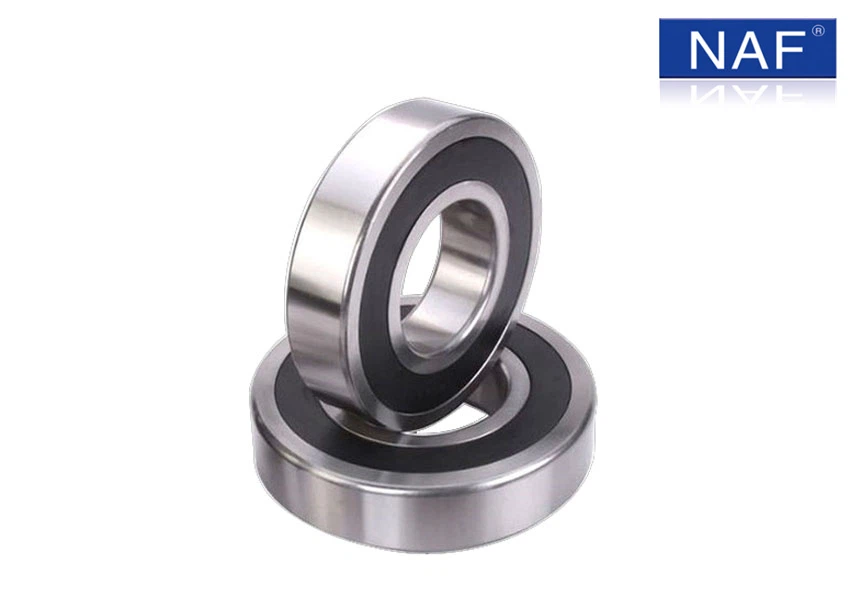

Deep groove ball bearing This is the most representative rolling bearing, widely used. Its inner and outer raceway are arc-shaped groove, can withstand radial load and bidirectional axial load, suitable for high-speed rotation and low noise, low vibration occasions. The sealed bearing with dust cover and rubber seal ring is pre-filled with an appropriate amount of grease. Bearing with ball port, the number of steel balls increases, improve the rated load. This kind of bearing is widely used in automobile, electrical, instrument, construction machinery, railway rolling stock, agricultural machinery and all kinds of professional machinery. Non-standard deep groove ball bearing size is non-standard size, suitable for special occasions.

Bearing No.	Boundary dimensions				Load Rating		Weight
	(ww)				(KN)		（Open）
	d	D	B	rmin	Dynamic	Static	(kg)
	d	D	B	rmin	Cr	Cor	(kg)
16001	12	28	7	0.3	5.08	2.38	0.019
16002	15	32	8	0.3	5.6	2.55	0.025
16003	17	35	8	0.3	6.82	3.38	0.027
16004	20	42	8	0.3	7.9	4.45	0.05
16005	25	47	8	0.3	8.42	5.15	0.06
16006	30	55	9	0.3	11.2	6.25	0.085
16007	35	62	9	0.3	11.5	8.8	0.1
16008	40	68	9	0.3	12.5	10.2	0.13
16009	45	75	10	0.6	12.8	10.2	0.17
16010	50	80	10	0.6	16.2	13.2	0.18
16011	55	90	11	0.6	19.4	16.2	0.26
16012	60	95	11	0.6	19.9	17.5	0.28
16013	65	100	11	0.6	20.5	18.6	0.3
16014	70	110	13	0.6	27.9	25	0.43
16015	75	115	13	0.6	28.7	26.8	0.46
16016	80	125	14	0.6	33.1	31.4	0.6
16017	85	130	14	0.6	34	33.3	0.63
16018	90	140	16	1	41.5	39.3	0.85
16019	95	145	16	1	42.7	41.9	0.89
16020	100	150	16	1	43.8	44.3	0.91

Bearing No.				Boundary dimensions				Load Rating		Weight
				(mm)				Load Rating		（Open）
				d	D	B	rmin	Dynamic	Static	(kg)
				d	D	B	rmin	Cr	Cor	(kg)
W6200	W6200-ZZ	W6200-2RS	W6200-2RSNR	10	30	14.3	0.5	5.11	2.39	0.045
W6201	W6201-ZZ	W6201-2RS	W6201-2RSNR	12	32	15.9	0.5	6.82	3.06	0.054
W6202	W6202-ZZ	W6202-2RS	W6202-2RSNR	15	35	15.9	0.5	7.64	3.72	0.068
W6203	W6203-ZZ	W6203-2RS	W6203-2RSNR	17	40	17.5	0.5	9.57	4.79	0.1
W6204	W6204-ZZ	W6204-2RS	W6204-2RSNR	20	47	20.6	0.5	12.84	6.65	0.15
W6205	W6205-ZZ	W6205-2RS	W6205-2RSNR	25	52	20.6	0.5	14.02	7.88	0.177
W6206	W6206-ZZ	W6206-2RS	W6206-2RSNR	30	62	23.8	0.5	19.46	11.31	0.282
W6207	W6207-ZZ	W6207-2RS	W6207-2RSNR	35	72	27	0.5	25.67	15.3	0.45
W6208	W6208-ZZ	W6208-2RS	W6208-2RSNR	40	80	30.2	0.5	29.52	18.14	0.627
W6209	W6209-ZZ	W6209-2RS	W6209-2RSNR	45	85	30.2	0.5	31.67	20.68	0.668
W6210	W6210-ZZ	W6210-2RS	W6210-2RSNR	50	90	30.2	0.5	35.07	23.18	0.767
W6302	W6302-ZZ	W6302-2RS	W6302-2RSNR	15	42	19	0.5	11.44	5.43	0.154
W6303	W6303-ZZ	W6303-2RS	W6303-2RSNR	17	47	22.2	0.5	13.58	6.58	0.191
W6304	W6304-ZZ	W6304-2RS	W6304-2RSNR	20	52	22.2	0.5	15.94	7.88	0.209
W6305	W6305-ZZ	W6305-2RS	W6305-2RSNR	25	62	25.4	0.5	22.38	11.49	0.35
W6306	W6306-ZZ	W6306-2RS	W6306-2RSNR	30	72	30.2	0.5	27	15.19	0.549
W6307	W6307-ZZ	W6307-2RS	W6307-2RSNR	35	80	34.9	0.5	33.36	19.21	0.708
W6308	W6308-ZZ	W6308-2RS	W6308-2RSNR	40	90	36.5	0.5	40.57	24.01	1.008
W6309	W6309-ZZ	W6309-2RS	W6309-2RSNR	45	100	39.7	0.5	52.86	31.83	1.308
W6310	W6310-ZZ	W6310-2RS	W6310-2RSNR	50	110	44.4	0.5	61.86	37.94	1.703

Bearing No.			Boundary dimensions						Load Rating		Weight
			(mm)						(KN)		（Open）
			(mm)						(KN)		(kg)
8000	87000	88000	d	D	B	C	Bi	rmin	Dynamic	Static	8000	87000	88000
8000	87000	88000	d	D	B	C	Bi	rmin	Cr	Cor	8000	87000	88000
8500	87500	88500	10	30	12.7	9	16,041	0.6	5.11	2.39	0.034	0.035	0.04
8011	87011	88011	11	32	12.7	10	15.4	0.6	6.82	3.06	0.045	0.046	0.04
8501	87501	88501	12	32	12.7	10	15.4	0.6	6.82	3.06	0.043	0.044	0.04
8013	87013	88013	13	32	12.7	10	15.4	0.6	6.82	3.06	0.041	0.042	0.04
8014	87014	88014	14	35	12.7	11	14,399	0.6	7.64	3.72	0.05	0.052	0.05
8502	87502	88502	15	35	12.7	11	14,399	0.6	7.64	3.72	0.048	0.049	0.054
8016	87016	88016	16	35	12.7	11	14.399	0.6	7.64	3.72	0.046	0.048	0.052
8602	87602	88602	15	42	15	13	17	1	11.44	5.43	0.085	0.088	0.095
8503	87503	88503	17	40	14,288	12	16,601	0.6	9.57	4.79	0.068	0.07	0.075
8603	87603	88603	17	47	16	14	18	1	13.58	6.58	0.115	0.117	0.127
8504	87504	88504	20	47	15.875	14	17.75	1	12.84	6.65	0.105	0.108	0.118
8604	87604	88604	20	52	19	15	23	1	15.94	7.88	0.157	0.16	0.18
8505	87505	88505	25	52	15.875	15	16.749	1	14.02	7.88	0.13	0.133	0.138
8605	87605	88605	25	62	21	17	25	1	22.38	11.49	0.268	0.272	0.295
8026	87026	88026	26	52	15.875	15	16.749	1	14.02	7.88	0.126	0.128	0.134
8506	87506	88506	30	62	20	16	24	1	19.46	11.31	0.225	0.23	0.259
8606	87606	88606	30	72	23	19	27	1	27	15.19	0.391	0.404	0.44
8507	87507	88507	35	72	21	17	25	1	25.67	15.3	0.316	0.321	0.347
8607	87607	88607	35	80	25	21	29	1.5	33.36	19.21	0.499	0.509	0.545
8508	87508	88508	40	80	24	21	27	1	29.52	18.14	0.468	0.486	0.536
8608	87608	88608	40	90	27	23	31	1.5	40.75	24.01	0.695	0.708	0.749
8509	87509	88509	45	85	24	21	27	1	31.67	20.68	0.54	0.545	0.554
8609	87609	88609	45	100	30	25	35	1.5	52.86	31.83	0.89	0.913	0.994
8510	88510	88510	50	90	26	22	30	1	35.07	23.18	0.577	0.59	0.636
8511	88511	88511	55	100	27	23	31	1.5	43.38	29.22	0.727	0.745	0.808
