deep groove ball bearing 6003

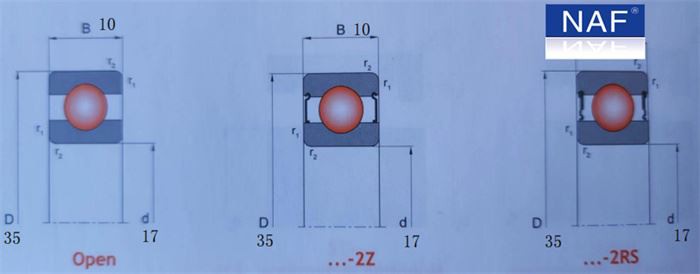

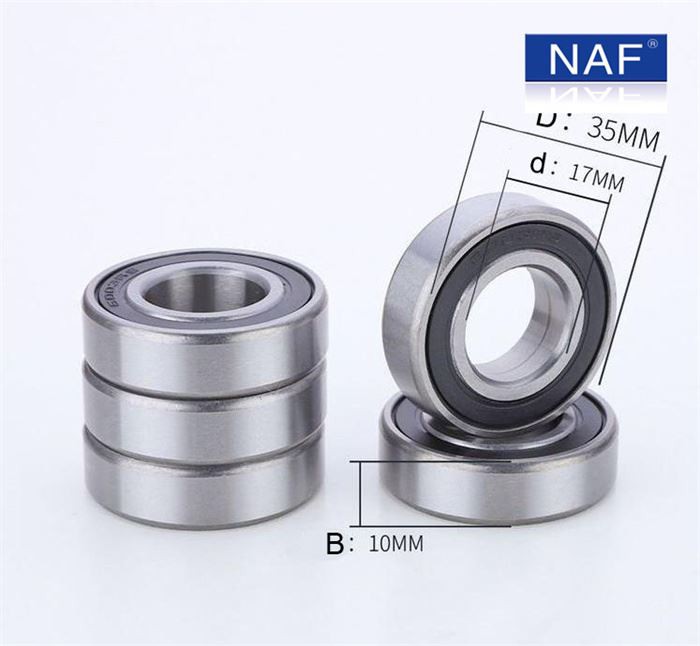

​6003 deep groove ball bearing is a representative rolling bearing. With an inner diameter of 17mm, an outer diameter of 35mm, and a thickness of 10mm, they are widely used to withstand radial loads and bidirectional axial loads. They are suitable for high-speed rotation and where low noise and vibration are required. Sealed bearings with dust shields or rubber seals are pre-filled with grease, and bearings with snap rings or flanges on the outer ring are not only easy to locate axially but also easy to install in the housing. Heavy-duty bearings are the same size as standard bearings, but the inner and outer rings are fitted with another groove, which increases the number of balls and increases the load rating.
Send Inquiry
Product Introduction

6003 deep groove ball bearing is a representative rolling bearing. With an inner diameter of 17mm, an outer diameter of 35mm, and a thickness of 10mm, they are widely used to withstand radial loads and bidirectional axial loads. They are suitable for high-speed rotation and where low noise and vibration are required. Sealed bearings with dust shields or rubber seals are pre-filled with grease, and bearings with snap rings or flanges on the outer ring are not only easy to locate axially but also easy to install in the housing. Heavy-duty bearings are the same size as standard bearings, but the inner and outer rings are fitted with another groove, which increases the number of balls and increases the load rating. Mainly used for small gasoline generators, motors, contact pieces, solenoid valves, thread grinders, heat transfer equipment, electric heating belts, vertical sawing machines, gas turbines, automotive lamps, iron removers, pre-processing equipment, metal welding machines, printing and dyeing Whole machinery and equipment, grinder, electrodialysis equipment, multi-stage reducer, drying equipment, dryer, beverage production equipment, hybrid heat exchanger, scribing car, high-pressure pump, abrasion resistance testing machine, filling machinery, chemical industry Pipes and accessories, hot blast stove, compound machine, and other equipment.

外形尺寸 Boundary Dimensions型号 Designation额定载荷 Load Rating(KN)
动态 Dyn.     静态 stat
疲劳极限载荷 Atigue Limit Load (KN)额定转速 speed ratings(rpm)r1 r2 (min)安装尺寸 mounting dimensions质量Mass (KGS)
dDB   Cr           CorCung oilng greaseda minDa maxra max
17351060036.243.250.14428000232000.319330.30.04
1735106003 ZZ6.243.250.14422000179000.319330.30.04
1735106003 2RS6.243.250.14413500110000.319330.30.04
