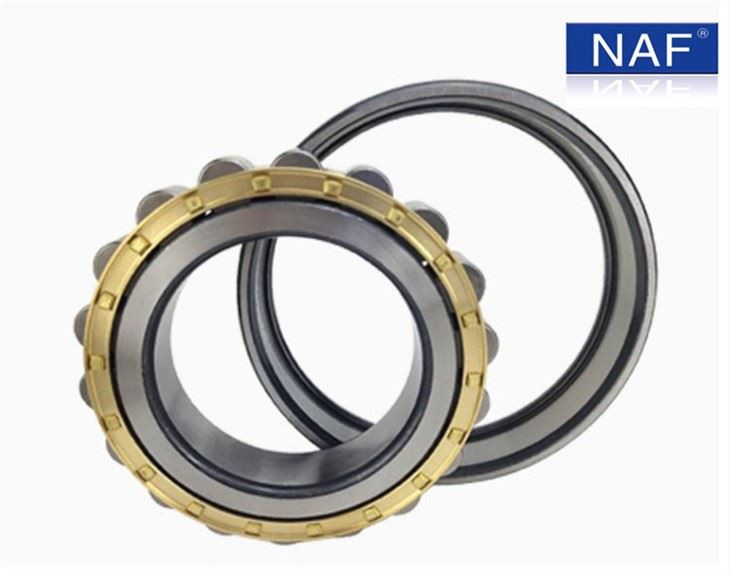

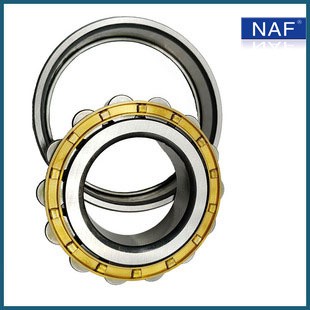

NF Type Cylindrical Roller Bearing
-2
-3
-4

Cylindrical Bearing Type Nf

Cylindrical roller bearing is a kind of bearing with the simplest structure. The inner wheel and outer wheel are in line contact with the roller. It has a large radial load capacity .Cylindrical roller bearings are separated type, easy to install and disassemble.

Send Inquiry

Product Introduction

NF series bearings are one-way positioning cylindrical roller bearings: the inner ring has a double edge, which is inseparable from the roller, and the outer ring has a single edge, which can only fall off from one side freely

Steel plate stamping cage is generally used for cylindrical roller bearings, brass turning cage is used for larger size or for high-speed rotation, double or four row cylindrical roller bearings are used to extend the service life.

Bearing No.	Main size(mm)				Basic Load rating(KN)		Speed rating (r/min)		Weight(kg)
	Main size(mm)				Basic Load rating(KN)		Speed rating (r/min)
	d	D	B	r	Cr	Cor	Grease	Oil
NF203	17	40	12	0.6	8	5.5	14000	18000	0.01
NF204	20	47	14	1	12.5	11	12000	16000	0.11
NF304	20	52	15	1.1	18	15	11000	15000	0.16
NF205	25	52	15	1	27.5	26.8	11000	14000	0.14
NF305	25	62	17	1.1	25.5	22.5	9000	12000	0.2
NF2305	25	62	24	1.1	38.5	39.2	9000	12000
NF206	30	62	16	1	19.5	18.2	8500	11000	0.2
NF306	30	72	19	1.1	46.5	47.5	8000	10000	0.6
NF306	30	72	27	1.1	46.5	47.5	8000	10000	0.6
NF207	35	72	17	1.1	28.5	28	7500	9500	0.3
NF307	35	80	21	1.5	41	39.2	7000	9000	0.56
NF2307	35	80	31	1.5	54.8	57	7000	9000	0.85
NF208EM	40	80	18	1.1	37.5	38.2	7000	9000	0.4
NF308	40	90	23	1.5	48.8	47.8	6300	8000	1.1
NF2308	40	90	33	1.5	70.8	76.8	6300	8000	1
NF209	45	85	19	1.1	39.8	41	6300	8000	0.5
NF309	45	100	25	1.5	66.8	66.8	5600	7000	0.9
NF2309	45	100	36	1.5	91.5	100	5600	7000	1.5
NF210	50	90	20	1.1	43.2	48.2	6000	7500	0.6
NF310	50	110	27	2	76	79.5	5300	6700	1.2
NF2310	50	110	40	2	112	132	5300	6700	1.9
NF211	55	100	21	1.5	52.8	60.2	5300	6700	0.7
NF311	55	120	29	2	97.8	105	4800	6000	1.7
NF2311	55	120	43	2	130	148	4800	6000	2.4
NF212	60	110	22	1.5	62.8	73.5	5000	6300	0.9
NF312	60	130	46	2.1	155	195	4500	5600	2
NF2312	60	130	46	2.1	155	195	4500	5600	2
NF213	65	120	23	1.5	73.2	87.5	4500	5600	1.1
NF313	65	140	33	2.1	125	135	4000	5000	2.5
NF2313	65	140	48	2.1	175	210	4000	5000	4
NF214	70	125	24	1.5	73.2	87.5	4300	5300	1.3
NF314	70	150	35	2.1	145	162	3800	4800	3.1
NF2314	70	150	51	2.1	212	260	3800	4800	4.1
NF215	75	130	25	1.5	89	110	4000	5000	1.4
NF315	75	160	37	2.1	165	188	3600	4500	3.7
NF2315	75	160	55	2.1	245	308	3600	4500	5.4
NF216	80	140	26	2	102	125	3800	4800	1.7
NF316	80	170	39	2.1	175	200	3400	4300	4.4
NF2316	80	170	58	2.1	258	328	3400	4300	6.4
NF217	85	150	28	2	115	145	3600	4500	2.1
NF317	85	180	41	2	212	142	3200	4000	5.2
NF2317	85	180	60	3	295	380	3200	4000	7.4
NF218	90	160	30	2	142	178	3400	4300	2.5
NF318	90	190	43	3	228	265	3000	3800	6.1
NF2318	90	190	64	3	310	395	3000	3800	8.4
NF219	95	170	32	2.1	152	190	3200	4000	3.2
NF319	95	200	45	3	245	288	2800	3600	7
NF2319	95	200	67	3	370	500	2800	3600	10.4
NF220	100	180	34	2.1	168	212	3000	3800	3.5
NF320	100	215	47	3	282	340	2600	3200	8.6
NF2320	100	215	73	3	415	558	2600	3200	13.5
